Corrosion behavior of new beta type Ti-29Nb-13Ta-4.6Zr alloy in simulated body fluid solution
-
1
Andalas University, Kampus Unand Limau Manis, Mechanical Engineering Dept, Indonesia
-
2
Graduate School of Engineering, Osaka University, Division of Materials and Manufacturing Science, Japan
-
3
Tohoku University, Institute for Materials Research, Japan
-
4
Laval University, Dept. Mining, Metallurgical and Materials Engineering & CHU de Québec Research Center, Canada
Introduction: A new β type Ti alloy, Ti-29Nb-13Ta-4.6Zr (TNTZ), with low Young's modulus (~58 GPa) has been recently developed for anti-bone absorption implant having low stress shielding impact [1]. Its mechanical properties can be further modulated by performing heat or thermo-mechanical treatments [1],[2]. This study aims to preliminarily assess the yet unknown corrosion behavior of this novel alloy in simulated body fluid as one of the important parameters in view of its application for medical implants.
Materials and Methods: TNTZ alloy (31.5Nb, 11.6Ta, 4.7Zr, 0.03Fe, <0.02Al and bal, all in wt.%) was prepared by levitation melting. Samples of the alloy and Ti6Al4V (control) were polished (up to grit #1200) and subjected to corrosion test (surface area 10 x 10 mm2) in simulated body fluid as suggested by Kokubo [3] at pH 7.4 and 37oC. Corrosion tests were conducted by using a Versastat-3 potentiostat with three electrodes system where Ag/AgCl, graphite and the specimens served as the reference, counter and working electrodes, respectively. The specimens were stabilized at open circuit potential (OCP) for 30 min and continued with polarization at a scan rate of 2 mV/s from -1 V to 1.5 V. The corrosion potential (Ecorr), corrosion current (icorr), and corrosion rate were determined by Tafel fit according to the ASTM G102 standard. The surface and cross section of the specimens after the tests was examined by using optical microscope and SEM, EDX and XPS.
Results and Discussion: Fig. 1 shows typical potentiodynamic polarization curves for TNTZ specimens. Based on Tafel fitting, the average Ecorr, icorr and corrosion rate of TNTZ and Ti6Al4V, respectively are: -0.4 V, 0.2 V; 2x10-7 A/cm2, 3x10-8 A/cm2; and 1.2x10-9 mm/year, 3x10-10 mm/year. It indicates a slight decrease of corrosion resistance of TNTZ compared to Ti6Al4V alloy. However, its corrosion rate is still far lower than that of 316L type stainless steel (2.1x10-3 mm/year in Ringer’s solution and 1.5x10-4 mm/year in Hanks’ solution) [4], and that of Ti-Ni alloy (4.6 x 10-4 mm/year in Hanks’ solution) [5].

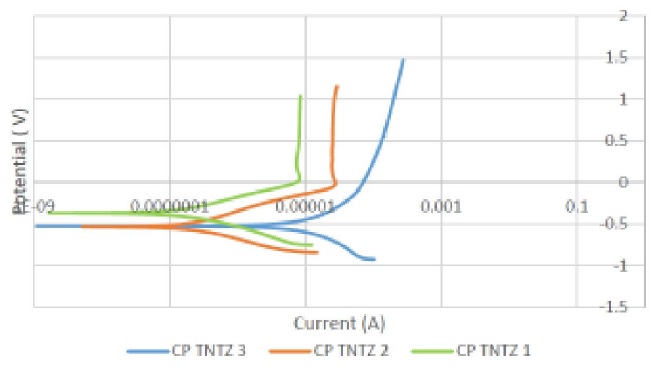

Fig. 1: Typical potentiodynamic polarization curves for TNTZ specimens.
Fig. 2 shows evidence of pitting corrosion in TNTZ specimen after subjected to the corrosion test. Further optical microscope examination on the cross sectional area confirm the pitting in the forms of elliptical and undercutting. Chemical compositional examination by EDX near the pitting area revealed higher oxygen content in both alloys with wider distribution on TNTZ without the trace of Zr. It is suspected that Zr was released/leached into the solution provoking pitting. Further analysis by XPS revealed higher binding energy and intensity for O and Ti than for Nb, Zr and Ta indicating the formation of predominantly TiO2 layer on the surface of TNTZ. We suspect micro segregation as the cause for pitting corrosion as the alloy was not homogenized adequately after casting.

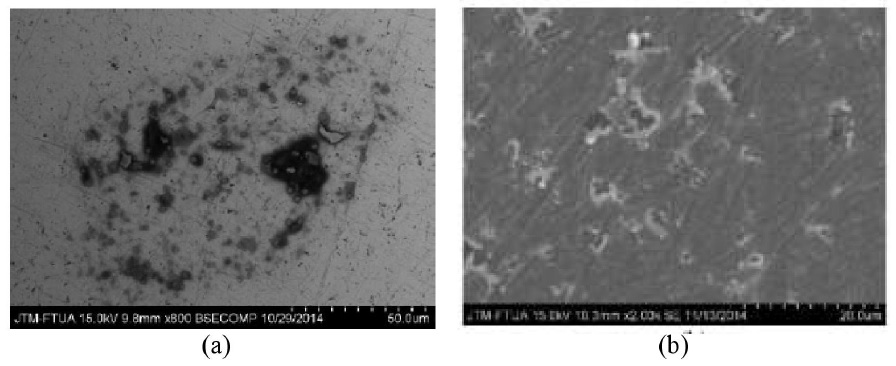

Fig. 2: Surface morphology of: (a) TNTZ, and (b) Ti6Al4V specimens after corrosion test.
Conclusion: This preliminary corrosion study reveals the high corrosion resistance of TNTZ alloy but with a tendency of pitting corrosion. The alloy should be subjected to further treatment such as homogenization to improve its corrosion behavior.
